Horizontal bed machining center

Retail price
0.0
Market price
0.0
Number of views:
1007
Product serial number
Quantity
-
+
Stock:
0
1
Product description
Parameters
Detailed introduction
◆ The market is rare.
◆ High cost performance.
◆ Three-axis rail.
◆ Automatic chip removal.
◆ can be customized according to requirements:
(1) can be lengthened.
(2) The worktable is fixed; the vertical column is a full-motion column type, that is, the movement of the X and Z directions is the movement of the column.

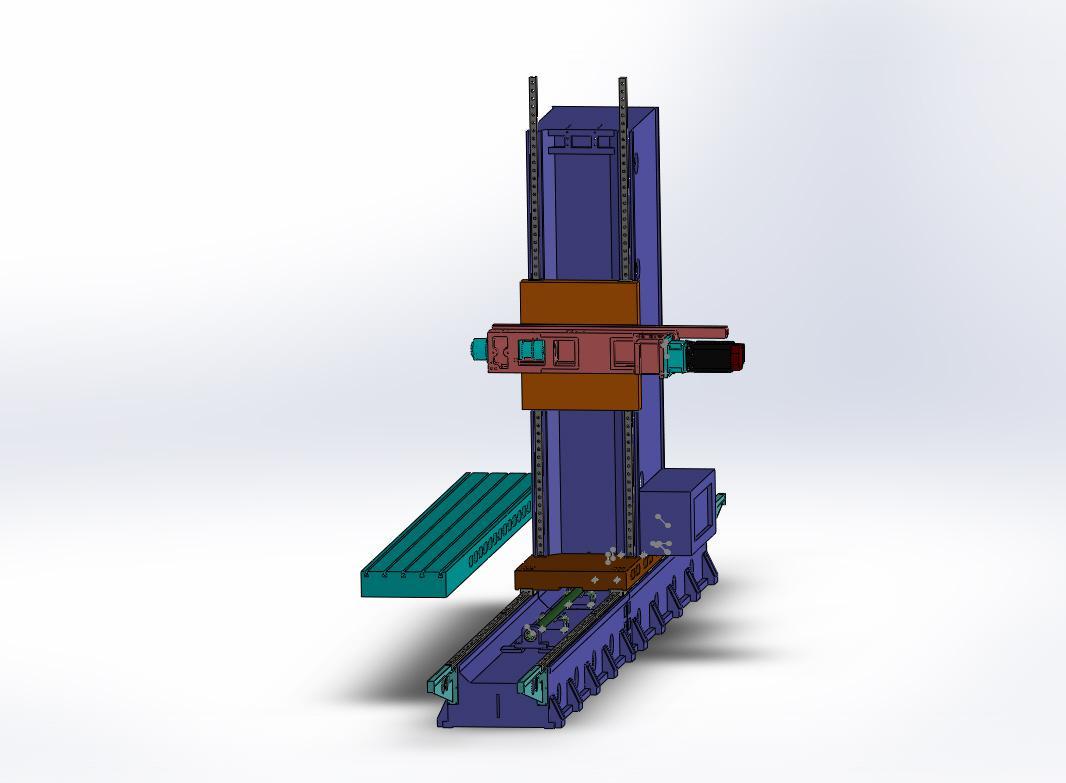

(3) Or the overall structure is changed to the floor boring and milling type: the worktable is fixed; the X direction is the column movement, and the Z direction is the ram movement. See below.
详细介绍 ◆ 市场不多见。 ◆ 性价比高。 ◆ 三轴线轨。 ◆ 自动排屑。 ◆可按要求定制: (1)可加长。 (2)工作台固定不动;立柱为全动柱式,即X、Z向的移动皆为立柱移动。 (3)或者整体结构改为落地镗铣式:工作台固定不动;X向为立柱移动,Z  向为滑枕移动。见下图。



specification

project

unit

Specifications

working desk size

mm

5000×650

Workbench maximum load

kg

10000

T-slot

mm

22×4×150

X-axis travel

mm

6500

Y-axis travel

580

Z-axis travel

mm

580

Spindle nose to countertop

mm

100-680

Spindle end to table center distance

mm

200~780

Spindle taper



BT-50

Spindle speed

rpm

20~8000

Fast speed X/Y/Z

m/min

12/24/24

Machine weight

t

22
